Application Hospitality and Commercial
Description

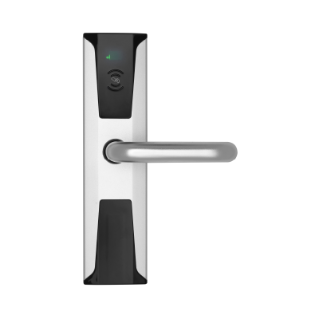

Designed specifically for the hospitality industry, the Schlage eGO Smart Hotel Lock makes guest access simple. Combined with Schlage Breeze Hotel, the Schlage eGO Smart Hotel Lock is a complete, electronic, guest and staff access system.
The Schlage eGO provides simple access options via the Schlage Breeze Hotel app on a smartphone, access card, or mechanical key override.
This lock is powered by Alkaline batteries (AAA) which ensures the lock remains fully functional even in the event of a power failure.

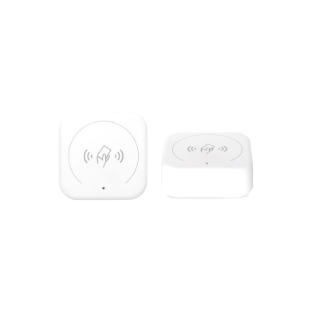

For remote access to the Schlage eGO, the lock can be paired with the Schlage Wi-Fi Bridge (BZ100) sold separately.
Warranty
Mechanical - 2 years
Electronic - 2 years
Finish - 2 years
Hardware Specification
Materials: External/Internal plates in aluminium, ABS plastic and zinc mortice lock is steel and stainless steel
Finishes: Satin silver
Weight: Packed: 2.1kg (mortice lock, spindles, external and internal plates, handles)
Spindle size: 8mm
Backset: ANZ centre distance: 62mm
Operating temperature: From -10°C to 70°C (with specified batteries)
Handles: AS 1428.1—2001 compliant return to door lever
Life cycle: 200,000 cycles
Battery: 4 x 1.5V AAA alkaline
Battery durability: 20,000 cycles (depending on operating conditions)
Door thickness: 40 - 60mm
Internal / External plate: 263mm (L) × 68mm (W) × 71mm (D including handle)
Certifications: RCM certified. Successfully tested to AS 1905 1-2005 up to 120 minutes. Refer to fire door manufacturer.
Compliance: Handles AS 1428.1 – 2001 compliant return to door lever. Internal lever provides free egress at all times.
Wireless Technology: Bluetooth 4.0
Minimum requirements: Schlage Breeze Hotel app: iOS 9.0 & Android 4.3. Schlage Breeze Guest app: iOS 9.0 & Android 4.3. Schlage Breeze Hotel (PC software): Microsoft Windows 10 or later
Access Specification
Intended use: Battery powered, electronic access control for guest room doors
Form factor: RFID reader integrated into the external plate. Battery holder integrated into the internal plate

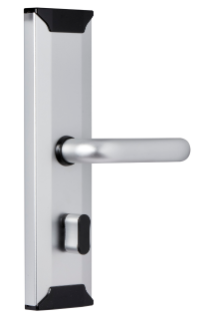

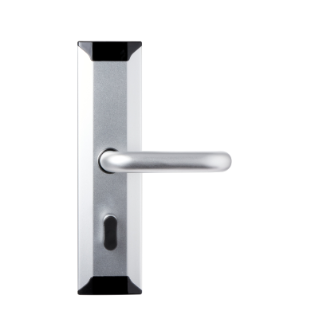

Key override: Mechanical key override for emergency access. Euro profile half cylinder concealed under plastic cover
Credentials: Contactless RFID Mifare ISO 14443A. Lock wake-up function activated by card from 2cm (max)
Suitable environment: For internal applications
Lock Functions
Electronic mortice lock
Guest and staff apps
Card or phone app access
Battery powered
Do not disturb – privacy turn
Key override
Audit trail: Last 500 events
LED Indication: Multicolour LED on external plate for battery level and privacy status
Mechanical lock: Latch only mortice lock
Management system: Schlage Breeze Hotel PC Software and app (SDK / API for PMS integration available)
Do not disturb: Do not disturb function activated by a turn on the internal plate.
App Specification
Data encryption: 128-bit and 256-bit AES encryption
Privacy: Mechanical privacy function activated by a turn on the internal plate
