Schlage SL3

Schlage SL3
Style Options
*Roll over thumbnail for product name and click to change main images
Finish1
Finish Options

Application  Residential



Description

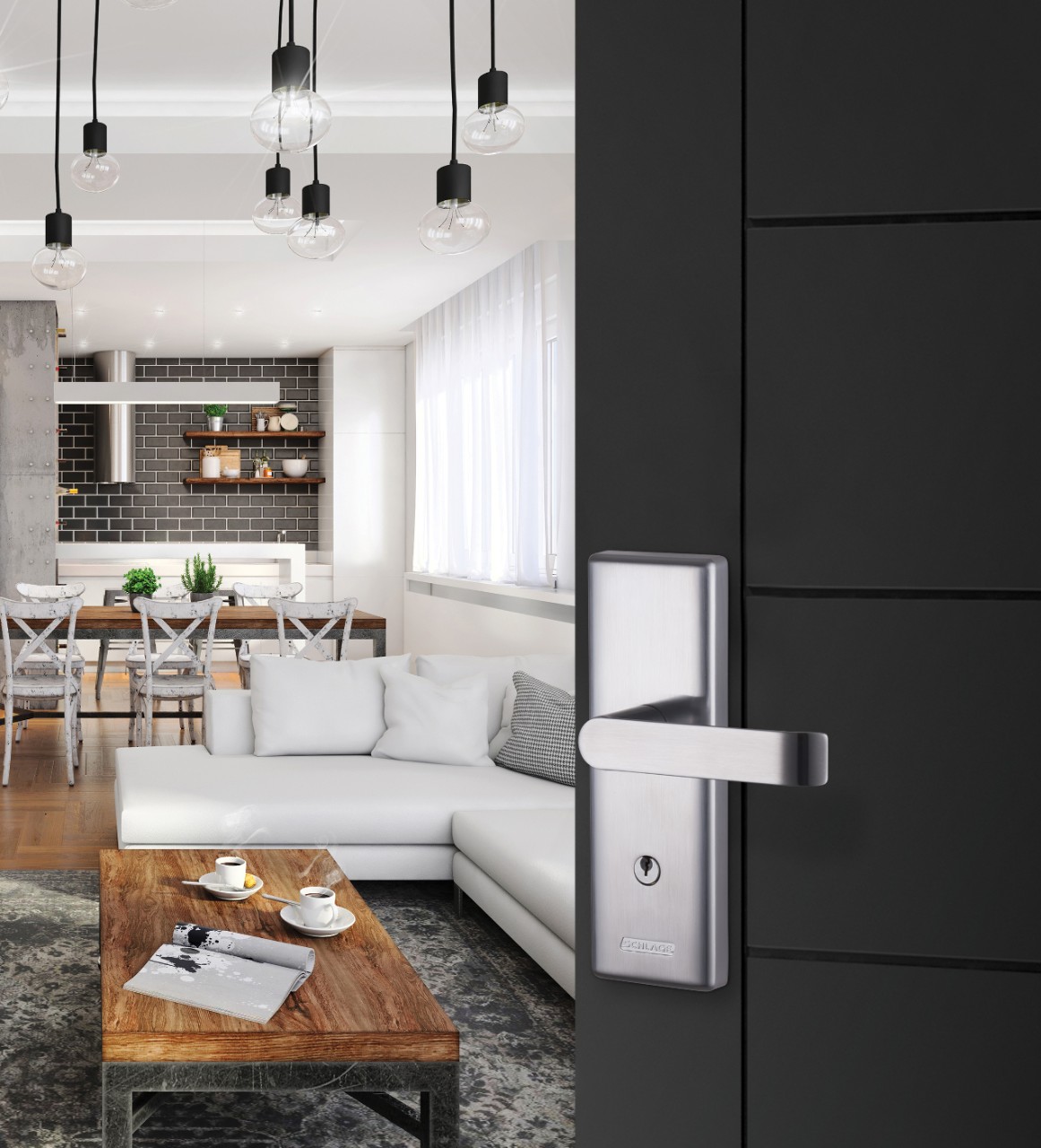

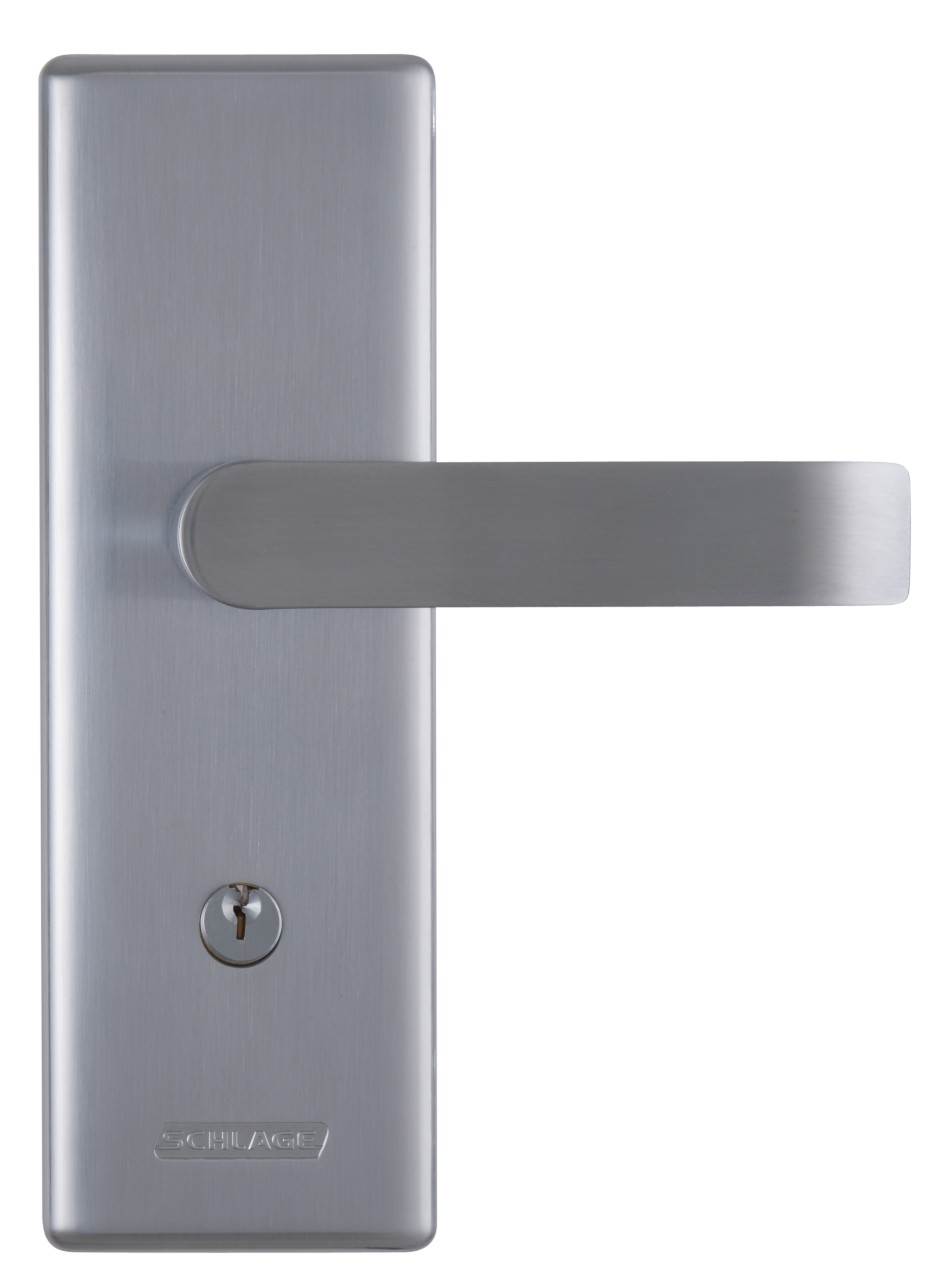

The Schlage SL3 is a stylish entrance lock that is durable and high performing. This versatile lock comes with three modes to meet the security needs of your home in an easy, safe and secure manner.

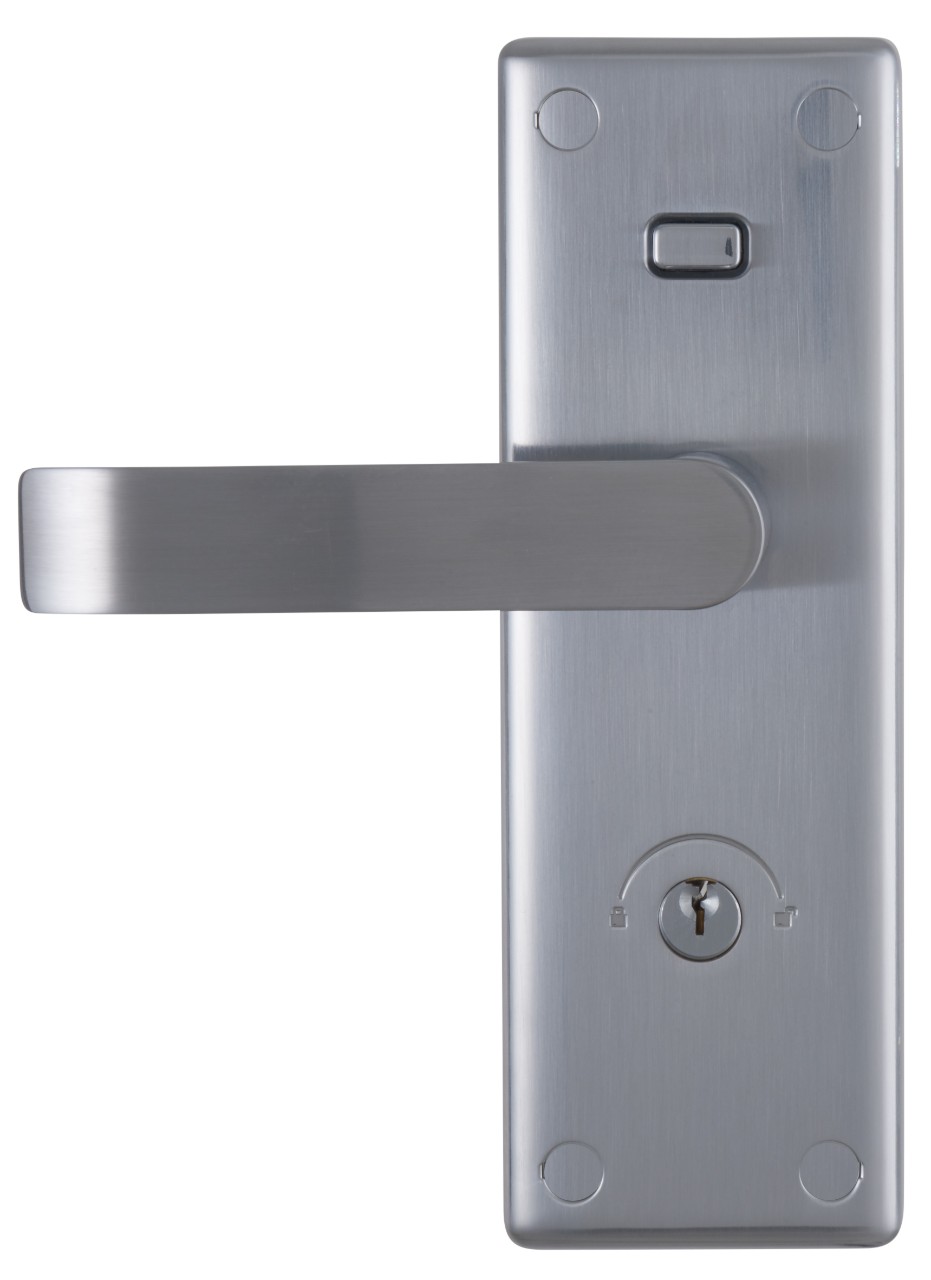

The passage (freedom) mode allows both levers to be operational, providing unrestricted entry and exit from your home. The privacy (safety) mode can be activated by simply pressing the internal privacy button which locks the external lever only, whilst leaving the internal lever free to escape without the use of a key. The deadlock (security) mode can only be engaged with the use of a key, from either side of the door and will require a key to unlock.



The Schlage SL3 entry lock can be matched with Regent Series for internal door furniture.



Warranty



25 years mechanical and 10 years finish warranty





Door thickness
    32mm to 45mm
Material     Zinc alloy, stainless steel and copper
Handing      Adjustable handing
Backset     60mm to 70mm adjustable latch
Cylinder     C4 6 pin PD



40mm to 45mm
40mm to 45mm
40mm to 45mm


Schlage SL3 Product Catalogue

Click here to download the product catalogue

Format PDF


Schlage SL3 Brochure

Click here to download the brochure

Format PDF


Schlage SL3 Warranty

Click here to downlaod the warranty

Format PDF


Schlage SL3 Installation Instrucions

Click here to download the dummy installation instructions

Format PDF


Schlage SL3 Template - Left Hand

Click here to download the template

Format PDF


Schlage SL3 Template - Right Hand

Click here to download the template

Format PDF


Schlage Maintenance Guidelines

Click here to download the maintenance guidelines

Format PDF

Schlage SL3 Triple Function Entry Lock - Installation and User Guide

  • Passage
  • Privacy
  • Deadbolt
