Features



  1. Constructed of quality components, with forged brass levers and plates
  2. Heavy duty spring provides a smooth, fast return action of the lever and minimises droop extending the life of the furniture
  3. Lever hub reinforced to withstand high levels of abuse
  4. Shear off spindles supplied with lock to minimise potential lock damage
  5. Supplied as standard with triwing security screws
  6. Suitable for doors 35mm to 50mm.
  7. Furniture re-handed by simple relocation of stop block.
  8. Only available in Alpha or Leonardo levers.



Specifications

Material

Forged Brass

Door Type

Timber or Metal

Door Thickness

32mm to 50mm

Spindle Size

7.6mm

Dimensions

Plate height 171mm

Plate thickness 11mm

Plate width 47mm

Compatible locks/latches

Legge 990MF Series mortice locks.

FixingBack to back, external plates concealed fixing, screws supplied with exterior plates only, screw length 75mm.

Downloads

Product Catalogue Legge 700 Series

Filename
2105 Product Catalogue Legge 700 Series.pdf
Size
892 KB
Format
application/pdf

Allegion Commercial Guide

Filename
2024 Allegion Commercial Guide.pdf
Size
4 MB
Format
application/pdf

Installation Instructions Legge 500 and 700 Series

Filename
1312 Installation Instructions Legge 500 and 700 Series.pdf
Size
138 KB
Format
application/pdf

Installation Guide Legge 500 and 700 Series

Filename
1312 Installation Guide Legge 500 and 700 Series.pdf
Size
127 KB
Format
application/pdf

No selected resources found. Try another category.

Allegion Maintenance Guidelines

Filename
2024 AllegionAU Maintenance Guidelines.pdf
Size
265 KB
Format
application/pdf

Warranty Legge 700 Series

Filename
1312 Warranty Legge 700 Series.pdf
Size
83 KB
Format
application/pdf

Security, durability and style by Legge

Legge's premium door hardware solutions provide security, durability, and style for both commercial and institutional spaces.

With over 60 years of heritage, and a focus on craftsmanship and innovation, Legge combines cutting-edge technology with timeless design.

Discover more

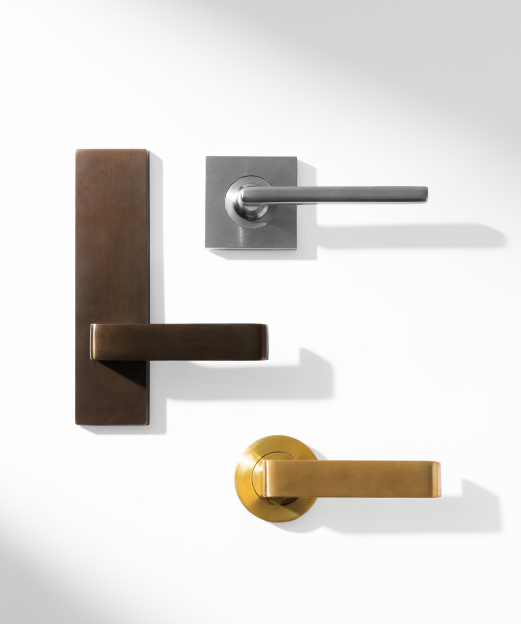

Legge 700AV
