Features



  1. Constructed of quality components, with forged brass levers and plates
  2. Heavy duty spring provides a smooth, fast return action of the lever and minimises droop extending the life of the furniture
  3. Lever hub reinforced to withstand high levels of abuse
  4. Shear off spindles supplied with lock to minimise potential lock damage
  5. Supplied as standard with triwing security screws
  6. Suitable for doors 35mm to 50mm



Specifications

Material

Forged Brass

Door Type

Timber or Metal

Door Thickness

35mm to 60mm

Spindle Size

7.6mm

Dimensions

Plate height 168mm;;Plate thickness 11mm, Plate width 48mm

Lever to Cylinder Centres

63.5mm

Downloads

Commercial Product Catalogue Legge 500 Series Anti-Vandal

Filename
2105 Commercial Product Catalogue Legge 500 Series Anti-Vandal.pdf
Size
788 KB
Format
application/pdf

Allegion Commercial Guide

Filename
2024 Allegion Commercial Guide.pdf
Size
4 MB
Format
application/pdf

Installation Instructions Legge 500 and 700 Series

Filename
1309 Installation Instructions Legge 500 and 700 Series.pdf
Size
138 KB
Format
application/pdf

Installation Guide Legge 500 and 700 Series

Filename
1309 Installation Guide Legge 500 and 700 Series.pdf
Size
127 KB
Format
application/pdf

No selected resources found. Try another category.

Allegion Maintenance Guidelines

Filename
2024 AllegionAU Maintenance Guidelines.pdf
Size
265 KB
Format
application/pdf

Warranty Legge 500 Series

Filename
1312 Warranty Legge 500 Series.pdf
Size
86 KB
Format
application/pdf

LCN is a pioneer
in the industry

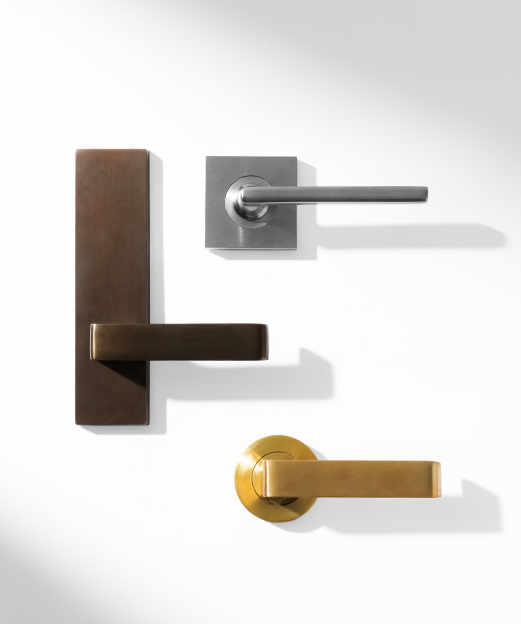

Legge's premium door hardware solutions provide security, durability, and style for both commercial and institutional spaces.
