Briton 1130 Series Door Closers

Briton 1130 Series Door Closer Briton 1130 Series Door Closer
Style Options
*Roll over thumbnail for product name and click to change main images
Finish1 Finish2
Finish Options

Application  Commercial



Description

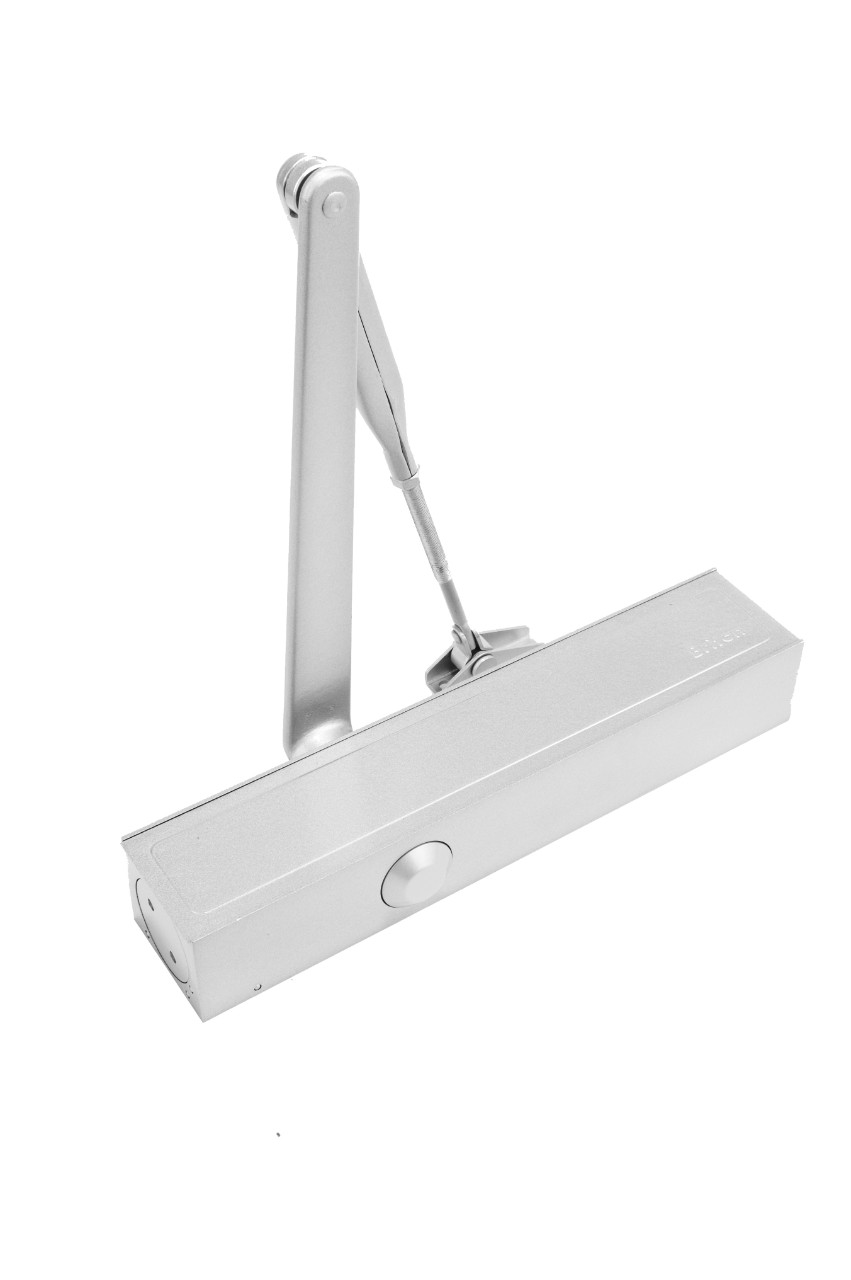

The Briton 1130 Series is a non-handed, slimline unit designed to be used on commercial interior/exterior wooden and metal doors e.g. storeroom, office and toilet doors.


The closer is an adjustable 2-6 strength closer to suit the most popular range of door sizes.

Door closing is hydraulically controlled, with adjustable back check and regulators to give the desired closing speed. The 1130 has a precision rack and pinion mechanism, and is easily mounted to the surface of door or the top jamb.

Stainless steel coversmm hold-open arms and track arms are available as accessories.



Warranty



10 years warranty





Handing     Non-handed
Strength

    Regular strength 1 to 6

    Track arm 1 to 4

Arm type      Regular and track
Regulating controls      Closing Speed, latching speed and backcheck
Body material      Pressure die cast aluminium
Mounting     Regular, top jamb and parallel arm



40mm to 45mm
40mm to 45mm
40mm to 45mm


Briton 1130 Series Product Catalogue

Click here to download the product catalogue

Format PDF


Briton 1130 Series Warranty

Click here to download the warranty

Format PDF


Briton 1130 Series Regular Installation Instructions and Template

Click here to download the installation instructions

Format PDF


Briton 1130T Series Track Arm Installation Instructions

Click here to download the installation instructions

Format PDF


Briton 1130T Series Track Arm Template

Click here to download the template

Format PDF


Allegion Maintenance Guide

Click here to download the maintenance guide

Format PDF

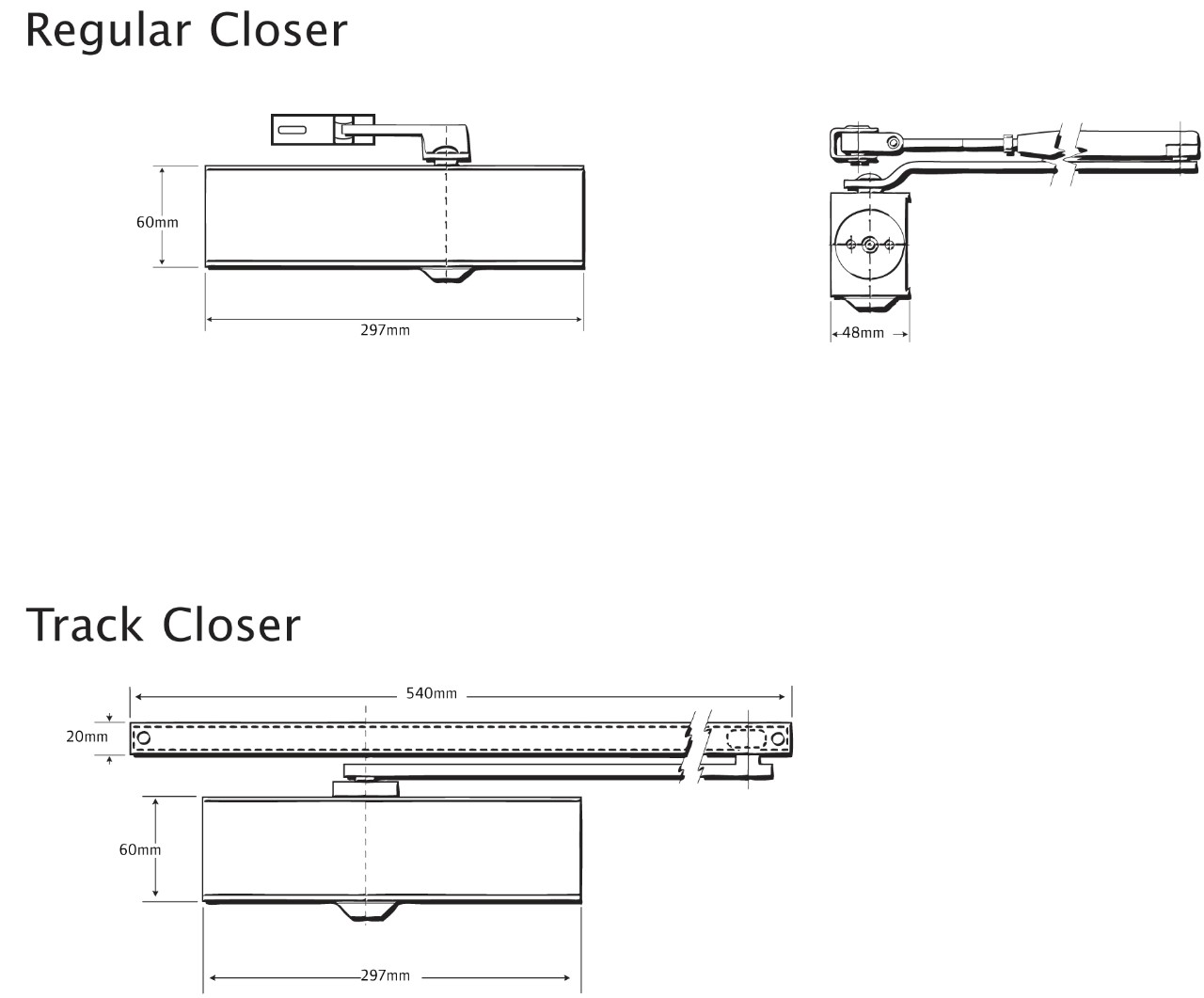

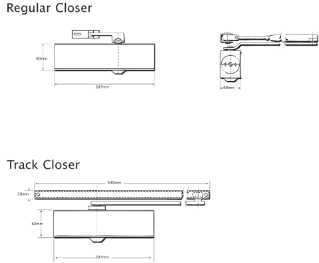

  • Regular closer
  • Hold open closer
